Single-seat pneumatic control valve

Single-seat pneumatic control valve

Pneumatic control valve is powered by compressed gas, with a pneumatic diaphragm head as the actuator, and driven by accessories such as valve positioner, converter, solenoid valve, holding valve, gas storage tank, gas filter, etc., to achieve on/off or proportional adjustment. It receives control signals from industrial automation control system to adjust various process parameters of pipeline media, such as flow rate, pressure, temperature, liquid level, etc. The characteristics of pneumatic control valves are simple control, fast response, and inherent stability, without the need for additional explosion-proof measures

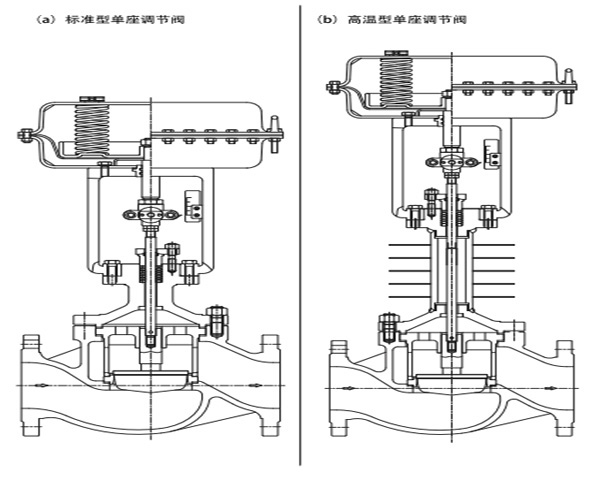

The pneumatic single seat regulating valve cage adopts a compressed valve seat design, which solves the problems of difficult disassembly and large leakage of traditional threaded valve seats, and extends the service life. Adopting a flow open design, the medium tends towards the direction of valve opening, with good controllability of small opening and minimal distortion of flow characteristics. According to the requirements of the working conditions, special valve cages that reduce noise and resist cavitation can be selected.

Pneumatic single seat regulating valve has stable operation, reliable action characteristics, small valve seat leakage, precise flow characteristics, and a wide adjustable range. It will undoubtedly achieve high Zhi control effects in a wide range of applications with unique advantages.

Main technical parameters

Nominal pressure: PN1.6, 2.5, 4.0, 6.0 ANSI150, 300, 600 JIS10, 20, 30, 40

Working temperature: Room temperature type: -60~+250 ℃, -20~+200 ℃; Heat dissipation type: -60~+450 ℃; Low temperature type: -60~-100 ℃, -100~-250 ℃

Environmental temperature: -20~-60 ℃

Flow characteristics: linear type, equal percentage type

Valve seat form: single seat, double seat, sleeve, angle type

Adjustable ratio: 50:1

Gas source: 0.3-0.6MPa

Input signal: 4-20mA, 1-5V

Feedback signal: 4-20mA, 1-5V

Part name and material

Valve body and cover: WCB, CF8, CF8M, CF3, CF3M

Valve core cover: 304, 316, 316L welded with Stellite alloy, 17-4PH (precipitation hardening stainless steel)

Packing: V-shaped PTFE, PPL, flexible graphite

Valve stem: 304, 316, 316L, 17-4PH

Ordering instructions: 1; Please provide design drawings and detailed parameters as much as possible, and our valve specialist Jia will review and control them for you. Thank you for visiting our website【 http://www.zjlnv.com/ 】If you have any questions You can call us and we will do our best to provide you with thoughtful service. Sales hotline: 13780162376.
