American standard butterfly valve

Stable quality: Implement full process quality monitoring, meticulous and meticulous, and conduct testing in all aspects!
Reasonable price: Strictly control costs, reduce expenses, and benefit customers!
Quick delivery: With a new production line and sufficient stock, the delivery time has been shortened!

Hotline：0577-67113630

The American standard butterfly valve adopts a three-dimensional eccentric inclined conical valve seat seal, and the butterfly plate seal is made of a new type of metal sheet and elastic material stacked together, embedded on the butterfly plate and matched with the valve seat. By using a butterfly plate to swing and compress the seal, the friction resistance of the sealing surface is small, and it has a tightening function as it closes. This ensures reliable sealing and completely disengages the sealing surface when opened, ensuring that the sealing surface is not damaged. The structural characteristics of this butterfly valve eliminate the disadvantage of other types of butterfly valves being unable to seal due to excessive opening, and can be used normally at high temperatures, overcoming the disadvantage of other types of valves being prone to leakage due to thermal expansion during high temperature use. The medium requirements for the use of this butterfly valve plow require the selection of different sealing surface materials to ensure that the sealing surface is wear-resistant, corrosion-resistant, and has a long service life.

Main technical parameters of American standard butterfly valve

The nominal Tongjing	DN（in)	2"-36"	2"-36"
Nominal Pressure	PN(MPa)	150LB	300LB
experimental pressure Ps（MPa）	strength test	3.0	7.5
experimental pressure Ps（MPa）	Sealing Test	2.2	5.5
Applicable Medium	Water, steam, oil products, acids and bases, seawater, etc
Applicable Temperature	-40～425℃

Main component materials of American standard butterfly valve

name	material
valve body	WCB、CFB、CF8M
valve plate	WCB、CFB、CF8M
Sail mast	304、316、1Cr13
sealing sleeve	316、304
filler	Flexible graphite, fluoroplastic

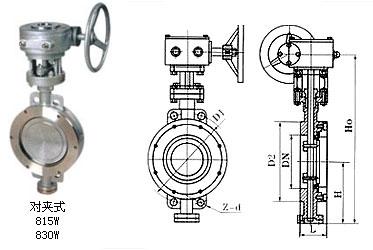

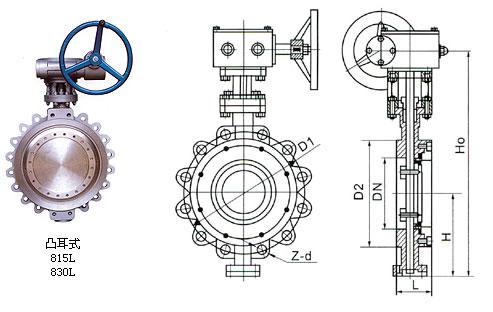

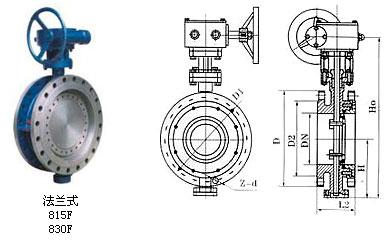

Nominal Diameter		Structural length (standard value)				External dimensions (reference value)				Connection size (standard value)								Reference weight（kg）
Nominal Diameter		L		L1		H		H0		D		D1		D2		M	Z-d
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm
2〞	50	1.69	43	4.25	108	4.33	110	13.58	345	6.00	152	4.75	120.5	3.62	92	M18	4-19	9	20
3〞	80	1.94	49	4.50	114	4.92	125	14.96	380	8.50	190	6.00	152.5	5.00	127	M18	4-19	11	29
4〞	100	2.19	56	5.00	127	5.70	145	16.34	415	9.00	229	7.50	190.5	6.19	157	M18	8-19	13	33
5〞	125	2.50	64	5.50	140	6.50	165	17.91	455	10.00	254	8.50	216	7.32	186	M20	8-22	16	38
6〞	150	2.75	70	5.50	140	6.89	175	21.45	545	11.00	279	9.50	241.5	8.50	216	M20	8-22	26	74
8〞	200	2.81	71	2.90	150	8.26	210	24.21	645	13.50	343	11.75	298.5	10.62	270	M20	8-22	34	86
10〞	250	3.00	76	6.30	160	9.84	250	27.36	695	16.00	406	14.25	362	12.75	324	M24	12-25	51	142
12〞	300	3.38	86	7.00	178	11.24	285	32.78	830	19.00	483	17.00	432	15.00	381	M24	12-25	72	167
14〞	350	3.63	92	7.50	190	12.60	320	35.43	900	21.00	533	18.75	476	16.25	413	M27	12-29	106	218
16〞	400	4.00	102	8.50	216	13.98	355	38.58	980	23.50	597	21.25	540	18.50	470	M27	16-29	133	275
18〞	450	4.50	114	8.74	222	14.96	380	40.55	1030	25.00	635	22.75	578	21.00	533	M30	16-32	176	315
20〞	500	5.00	127	9.00	229	16.34	415	43.70	1110	27.50	699	25.00	635	23.00	584	M30	20-32	190	395
24〞	600	6.06	154	10.50	267	18.70	475	51.37	1305	32.00	813	29.50	749.5	27.25	692	M33	20-35	394	580
30〞	750	6.50	165	11.50	292	22.38	580	60.03	1525	38.75	985	36.00	914	33.75	857	M33	28-35	476	717
32〞	800	7.50	190	12.50	318	24.80	630	62.40	1585	41.75	1060	38.50	978	36.00	914	M39	28-41	618	880
36〞	900	8.00	203	13.00	330	26.77	680	69.48	1765	46.00	1168	42.75	1085	40.25	1022	M39	32-41	762	1042
