Stainless Steel Ball Valve

The working principle of a ball valve is to rotate the valve to make it open or close. Ball valve switches are lightweight, small in size, can be made into large diameters, reliable in sealing, simple in structure, easy to maintain, and the sealing surface and spherical surface are often in a closed state, which is not easily eroded by media. They are widely used in various industries

Ball valves and plug valves belong to the same type of valve, except that their closing element is a sphere that rotates around the centerline of the valve body to achieve opening and closing.

Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of media. Ball valve is a new type of valve widely used in recent years.

Features:

(1) Low fluid resistance, full bore ball valves have almost no flow resistance.

(2) Simple structure, small size, and light weight.

(3) Tight and reliable. It has two sealing surfaces, and currently, various plastics are widely used as sealing surface materials for ball valves, which have good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.

(4) Easy to operate, quick opening and closing, only need to rotate 90 ° from fully open to fully closed, making it convenient for remote control.

(5) Easy to maintain, ball valve structure is simple, and the sealing ring is generally movable, making disassembly and replacement relatively convenient.

(6) When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and when the medium passes through, it will not cause erosion of the valve sealing surface.

(7) Widely applicable, with diameters ranging from a few millimeters to several meters, and suitable for applications ranging from high vacuum to high pressure.

(8) Due to the wiping property of ball valves during opening and closing, they can be used in media with suspended solid particles.

Q41F-16P Ball Valve Performance Specification

DN mm		DN15-DN300
Material code		C	P	R
Main components	valve body	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
	sphere	2Cr13	1Cr18Ni9Ti	1Cr18Ni12MoTi
	valve stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12MoTi
	sealing ring	Enhanced polytetrafluoroethylene to polystyrene
	filler	Polytetrafluoroethylene flexible graphite
Applicable working conditions	Applicable Medium	Steam, water, oil products	Nitric acid	Acetic acid
	Applicable Temperature	-28℃ - 300℃
actuator	model	DA/SR、GTD/GTE、QGSY
	air supply pressure	0.4-0.7MPa

Test pressure (Mpa)	Nominal Pressure(Mpa)					pressure level(class)			JIS(Mpa)
Test pressure (Mpa)	1.6	2.5	4.0	6.4	10.0	150	300	600	10K	20K
strength test	2.4	3.8	6.0	9.6	15.0	3.1	7.8	15.3	2.4	3.8
Sealing Test	1.8	2.8	4.4	7.0	11.0	2.2	5.6	11.2	1.5	2.8
airtightness test	0.5～0.7

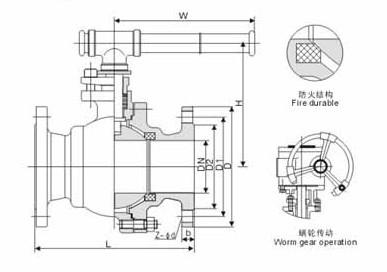

Structural diagram of stainless steel ball valve：

Main External And Connection Dimension

Unit：mm

Type	DN	PN1.6MPa								WT （kg）
		L	D	D1	D2	b	z-d	H	W
Q41F-16C Q41F-16P	15	130	95	65	45	14	4-14	78	140	3
	20	140	105	75	55	14	4-14	84	160	4
	25	150	115	85	65	14	4-14	95	180	5
	32	165	135	100	78	16	4-18	150	250	9
	40	180	145	110	85	16	4-18	150	300	11
	50	200	160	125	100	16	4-18	170	350	15
	65	220	180	145	120	18	4-18	195	350	19
	80	250	195	160	135	20	8-18	215	400	27
	100	280	215	180	155	20	8-18	250	500	38
	125	320	245	210	185	22	8-18	265	600	58
	150	360	280	240	210	24	8-18	270	800	81
	200	400	335	295	265	26	12-23	330	800	95
Type	DN	PN2.5MPa								WT （kg）
		L	D	D1	D2	b	z-d	H	W
Q41F-25 Q41F-25P	15	130	95	65	45	16	4-14	103	100	3
	20	140	105	75	55	16	4-14	112	160	4
	25	150	115	85	65	16	4-14	123	160	6
	32	165	135	100	78	18	4-18	150	250	10
	40	180	145	110	85	18	4-18	156	250	14
	50	200	160	125	100	20	4-18	172	350	20
	65	220	180	145	120	22	8-18	197	350	25
	80	250	195	160	135	22	8-18	222	450	30
	100	280	230	190	160	24	8-23	253	450	40
	125	320	270	220	188	28	8-25	275	600	65
	150	360	300	250	218	30	8-25	286	800	85
	200	400	360	310	278	34	12-25	360	1200	100
Type	DN	PN4.0MPa								WT（kg）
		L	D	D1	D2	b	z-d	H	W
Q41F-40 Q4	15	130	95	65	45	16	4-14	103		3
	20	140	105	75	55	16	4-14	112		4
	25	150	115	85	65	16	4-14	123		6
	32	180	135	100	78	18	4-18	150		10
	40	200	145	110	85	18	4-18	156		14
	50	220	160	125	100	20	4-18	172		20
	65	250	180	145	120	22	8-18	197		25
	80	280	195	160	135	22	8-18	222		30
	100	320	230	190	160	24	8-23	253		40
	125	400	270	220	188	28	8-25	275		65
	150	400	300	250	218	30	8-25	286		85
	200	502	375	320	282	38	12-30	340		100
Type	DN	PN6.4MPa								WT （kg）
		L	D	D1	D2	b	z-d	H	W
Q41F-64 Q4	15	140	105	75	55	18	4-14	105	130	3.1
	20	152	125	90	68	20	4-18	125	130	4.9
	25	180	135	100	78	22	4-18	135	160	7.2
	32	200	150	110	82	24	4-23	150	160	8.7
	40	220	165	125	95	24	4-23	165	230	12.1
	50	250	175	135	105	26	4-23	175	230	16.7
	65	280	200	160	130	28	8-23	200	400	28.2
	80	320	210	170	140	30	8-23	210	400	36.9
	100	360	250	200	168	32	8-25	250	700	66
	125	381	295	240	202	36	8-34	295	1100	98
	150	403	340	280	240	38	12-34	340	1500	142

Ordering Notice:

1、 When the usage situation is very important or the environment is complex, please provide design drawings and detailed parameters as much as possible, and our valve specialist Jia will review and control them for you.
